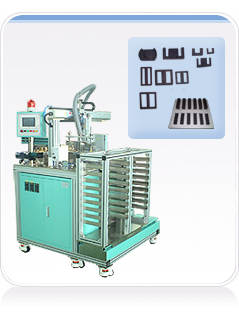

SPEC / NAME CORE AUTO LOADING M/C (MN-CORE) APPLICATION ITEM FERRITE-CORE L : 10-40mm W: 10-35mm H: 5-45mm CORE LOADING TYPE VACUUM (AIR) CONVEYOR MOTOR SPEED CONTROL MOTOR (25W) VACUUM TYPE BLOWER VACUUM (AIR) CART TYPE 2 STEP 9 ROW CART MOVEMENT MOTOR BRAKE MOTOR (90W) RPM (MIN - MAX) 20 - 35 EA FILLING VOLUME (MAX～MIN) 5 ～ 6 Kgf/㎤ OP-BOX TYPE TOUCH OPERATION PANEL MAIN CONTROL TYPE P L C CONTROL EXTERNAL DIMENSION 1200 X 1200 X 1682 NET WEIGHT(Kg) 800Kg MAIN POWER 220V 60HZ 1HP / 380V 3HP 60HZ
