| SPEC / NAME |

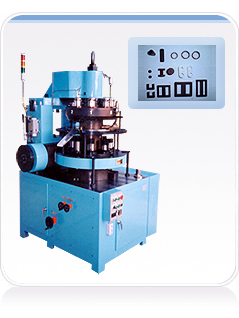

HBT-20 |
| APPLICATION ITEM |
FERRITE-CORE : ￠2-￠20 L: 2-7
5CERAMIC : ￠2-￠20 L: 2-75 |
| TABLE ￠ |
600 |
| TABLE P.C.D |
450 |
| NUMBER OF PUNCH (ea) |
8,10,12,16 |
| PRESSURE (ton) |
20 |
| UPPER/LOWER HOLDER ￠ |
65/65 |
| DIE HOLDER (mm) |
75 |
| TABLE R.P.M (min) |
8-16/min |
| FILLING VOLUME |
5-6kg/㎤ |
| OP-BOX TYPE |
SWITCH PANEL |
| MAIN CONTROL TYPE |
PLC CONTROL |
| EXTERNAL DIMENSION |
1000 X 1500 X 2000 |
| NET WEIGHT(Kg) |
5,000 |
| MAIN POWER |
220V 3HP 50/60HZ |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
