| 현재위치 : HOME > 제품소개 > ferrite part |
|
|
|
|
|
 |
| |
 |
|
| SPEC / NAME |

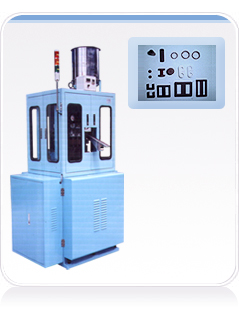

HBT-10 |
| APPLICATION ITEM |
FERRITE-CORE : ￠2-￠15 L: 2-50 CERAMIC : ￠2-￠15 L: 2-50 |
| TABLE ￠ |
450 |
| TABLE P.C.D |
300 |
| NUMBER OF PUNCH (ea) |
8,10,12,16 |
| PRESSURE (ton) |
10TON |
| UPPER/LOWER HOLDER ￠ |
50/50 |
| DIE HOLDER (mm) |
50 |
| TABLE R.P.M (min) |
8-20 /min |
| FILLING VOLUME |
5-6kg/㎤ |
| OP-BOX TYPE |
SWITCH PANEL |
| MAIN CONTROL TYPE |
PLC CONTROL |
| EXTERNAL DIMENSION |
900 X 1200 X 1800 |
| NET WEIGHT(Kg) |
3,000 |
| MAIN POWER |
220V 3HP 50/60HZ |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
