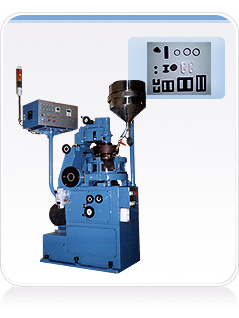

SPEC / NAME HBT-3 APPLICATION ITEM FERRITE-CORE : ￠2 - ￠6 L: 2 - 35CERAMIC : ￠2 - ￠6 L: 3 - 35 TABLE ￠ 300 TABLE P.C.D 200 NUMBER OF PUNCH (ea) 8,10,12,16 PRESSURE (ton) 3TON UPPER/LOWER HOLDER ￠ 35/35 DIE HOLDER (mm) 35 TABLE R.P.M (min) 8-24 /min FILLING VOLUME 5-6kg/㎤ OP-BOX TYPE SWITCH PANEL MAIN CONTROL TYPE PLC CONTROL EXTERNAL DIMENSION 700 X 100 X 1600 NET WEIGHT(Kg) 900 MAIN POWER 220V 3HP 50/60HZ
