| SPEC / NAME |

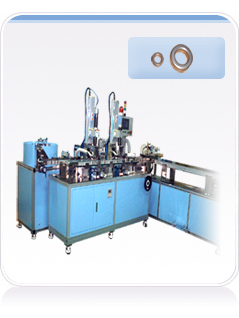

CORE CHAMFERING & LOADING M/C |
| APPLICATION ITEM |
MPP-CORE : ￠28 - ￠58 H : 25-40mm |
| CHAMFE R.P.M |
20 - 60 EA |
| SPINDLE TYPE |
200W / 1600 RPM/MAX |
| RPM (MIN - MAX) |
5 - 12 EA |
| FILLING VOLUME (MAX～MIN) |
5 ～ 6 Kgf/㎤ |
| OP-BOX TYPE |
TOUCH OPERATION PANEL |
| MAIN CONTROL TYPE |
P L C CONTROL |
| EXTERNAL DIMENSION |
2600 X 2960 X 1790 |
| NET WEIGHT(Kg) |
850Kg |
| MAIN POWER |
220V 60HZ 1HP / 3HP |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
