SPEC / NAME

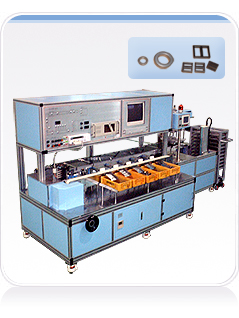

CORE GRADE MACHINE (LARGE/MEDIUM)
APPLICATION ITEM
MPP-CORE : ￠16-￠42 L: 5-14mm
E-CORE : L : 10-35mm W:10-35mm H: 5-35mm
CORE GRADE TYPE
100MHz 1V ( L , Q ) GRADE
GRADE R.P.M
20 - 60 EA
CART TYPE
2 STEP / 10 ROW
RPM (MIN - MAX)
20 - 60 EA
FILLING VOLUME (MAX～MIN)
5 ～ 6 Kgf/㎤
OP-BOX TYPE
OPERATION PANEL / SWITCH
MAIN CONTROL TYPE
P L C CONTROL / CAM
EXTERNAL DIMENSION
2450 X 1240 X 1800
NET WEIGHT(Kg)
1300Kg
MAIN POWER
220V 60HZ 1HP / 3HP
