| SPEC / NAME |

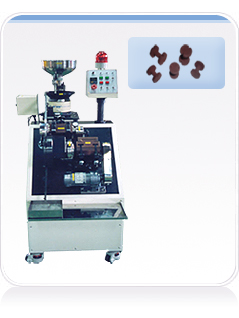

Core-Grindin
M/C (Drum 1) |
Core-Grindin
M/C (Drum 2) |
| APPLICATION ITEM |
FERRITE-CORE￠ : 2 - 12 |
FERRITE-CORE￠ : 2 - 20 |
| DIAMOND WHEEL R.P.M. |
9000 |
8000 |
| DIAMOND WHEEL ￠ |
120 |
260 |
| DRUM R.P.M. |
1-6/Min |
1-4/Min |
| MOTOR POWER (Kw) |
1 |
3 |
| FILLING VOLUME |
5-6kg/㎤ |
5-6kg/㎤ |
| OP-BOX TYPE |
SWITCH PANEL |
SWITCH PANEL |
| MAIN CONTROL TYPE |
PLC CONTROL |
PLC CONTROL |
| EXTERNAL DIMENSION |
900 X 700 X 1300 |
900 X 800 X 1300 |
| NET WEIGHT(Kg) |
600 |
800 |
| MAIN POWER |
220V 3HP 50/60HZ |
220V 3HP 50/60HZ |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
